| Model |

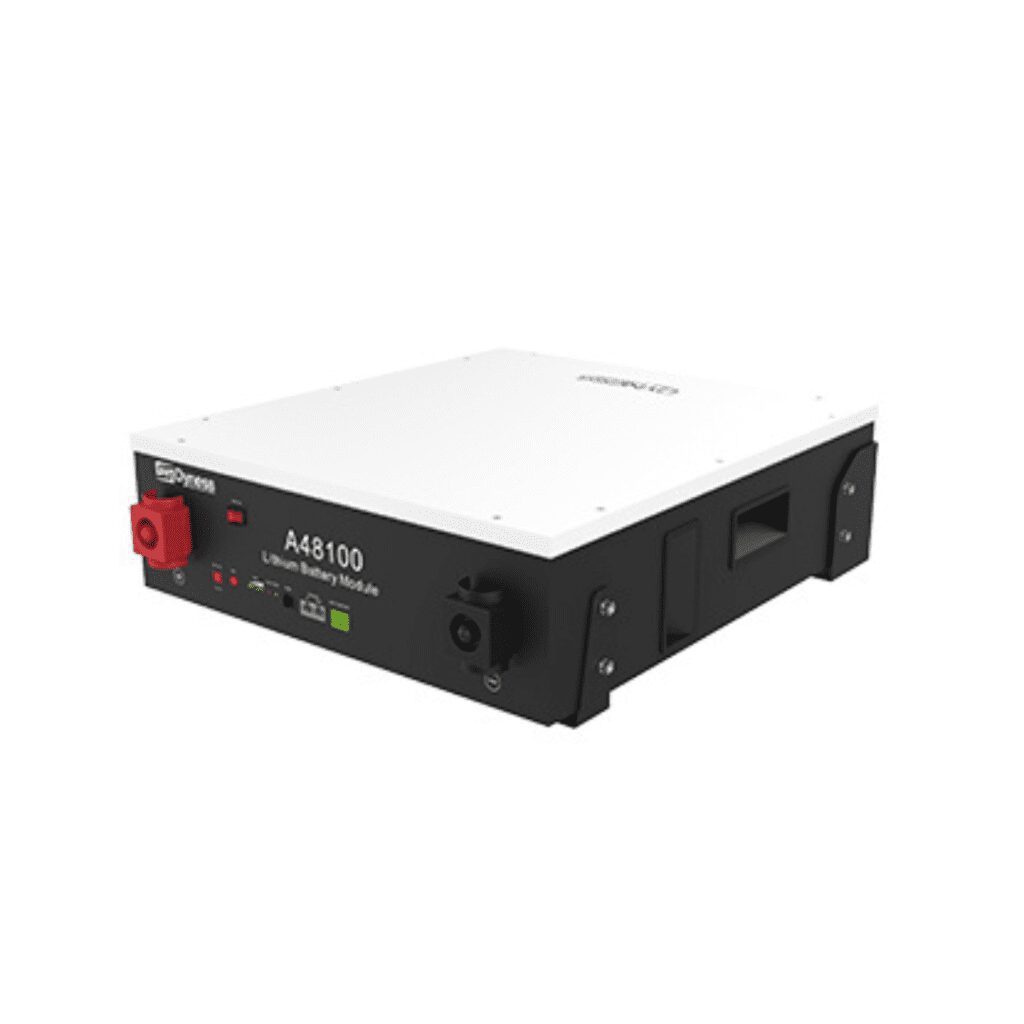

A48100 |
| Battery Type |
LiFePO4 |
| Nominal Battery Energy |
4.8kWh |
| Battery Capacity |
100 Ah |
| Nominal Voltage |
48V |
| Charging Cut-off vol. |
54V |
| Discharge End-off vol. |
42V |
| Recommended C Rate |
0.5C |
| Recommended Charge / Discharge Current |
50A |
| Max. Power Charge / Discharge Current |
75A |
| Peak power Charge / Discharge Current |
100A (15s) |
| Communication |
CAN / RS485 |
| Dimension ( W D H |
504 x 597 x 155mm |
| Net Weight |
45kg |
| Charging Temp. Range |
0-50C |
| Discharging Temp. Range |
-20-50C |
| Protection Level |
IP20 |
| Warranty |
10 Years |
| Calendar Life |
>6000 Cycles |
| Certification & Safety Standard |
CE / UN38.3 |
| Compatible Inverters |
Goodwe / SMA / Victron / Imeon / Solis / Luxpower / Growatt / SAJ / Voltronic / Deye etc. |
| Pros |
Can be used in both off-grid and hybrid setups, compact design |
| Scalability |
Up to 40 modules in parallel |
